Reactive UI

Let's create playback control view for a music player app. Our view will show playback progress of current song, and provide user with basic actions to control playback and switch songs in an album. Assuming that we already have ui layout properly done in xml, and playback service gives us nice api based on Signals, we are going to implement view controller layer in reactive way.

Working code from this article, can be found in reactive-ui-sample project on github.

Prerequisites

Ui Design

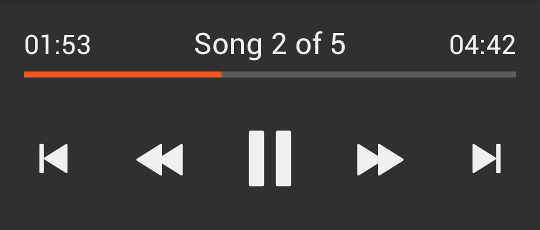

Our playback control is quite straight-forward, has couple basic elements that we would expect to see in audio player. Here is what we got from a designer.

Playback control ui design

Let's assume that we already have layout and all other resources prepared and ready to use in our view implementation.

Service Interface

Our UI needs service from which we can access album information, and control playback. In real world, this would be couple different services, but for the sake of our example we will just put everything in single trait. Api will be using Signals, if you don't know what that is, check out my previous article.

trait PlaybackService {
  // Currently played chapter
  val currentSong: Signal[Uri]

  val playbackState: Signal[PlaybackState]

  def playbackPosition(song: Uri): Signal[Millis]

  def song(uri: Uri): Signal[Song]
  def album(id: String): Signal[Album]

  def play(song: Uri): Unit
  def pause(): Unit
  def seek(position: Millis): Unit
}

We are not defining all classes used in this api, let's just assume that they contain what we need.

Implementation

Now that we have all dependencies defined, we can start implementing our view, we will do that step by step.

Inflate and bind views

At first let's define our custom view and bind all required parts together. Used ViewHelper trait provides utility methods for view inflation and binding, as well as dependency injection, all of that is not relevant in this example, so let's just assume that presented code works.

class PlaybackView(context: Context, attrs: AttributeSet, style: Int)
    extends RelativeLayout(context, attrs, style) with ViewHelper {

  val service = inject[PlaybackService]               // inject our service

  inflate(R.layout.playback_view, this)               // inflate xml layout

  val tvPosition  : TextView = R.id.tvPosition        // bind text views
  val tvDuration  : TextView = R.id.tvDuration
  val tvSong      : TextView = R.id.tvSong

  val pbProgress  : ProgressBar = R.id.pbProgress     // bind progress bar

  val btnPrevious : ImageView = R.id.btnPrevious      // bind buttons
  val btnRewind   : ImageView = R.id.btnRewind
  val btnPlay     : ImageView = R.id.btnPlay
  val btnForward  : ImageView = R.id.btnForward
  val btnNext     : ImageView = R.id.btnNext

  // rest of the code goes here ...
}

Display current state

Ui needs to show what song is currently played and current playback position, we also need to refresh it every time it changes. We'll start by creating helper signals which will be used in multiple places, for example we would need to access currently played song and currently played album.

val currentSong = service.currentSong flatMap service.song

val currentAlbum = currentSong flatMap { song =>
  service.album(song.album)
}

val currentPosition = service.currentSong flatMap service.playbackPosition

That was easy, with simple flatMap we can extract info based on current song uri.

Current song label

Song label displays an index of current song and count of songs in current album as a string, eg. Song 1 of 15. To compose this string we need to use current song and current album info, we will use previously defined helper signals.

val songLabel = for {
  song  <- currentSong
  album <- service.album(song.album)
} yield s"Song ${album.indexOf(song) + 1} of ${album.songs.size}"

Once we have the label defined as signal we can actually update appropriate text view. View operations can only be done from UI thread, for that we need to use special ExecutionContext, in my code this useful thing is defined in global object Threading.ui.

songLabel.on(Threading.ui) { tvSong.setText }

This single line of code will make sure that our text view always has proper value.

Song duration

Setting song duration label is even easier now.

currentSong.map(_.duration.toSeconds.toString).on(Threading.ui) { tvDuration.setText }

Notice that we used map to extract only required string and only then we subscribe to resulting signal. This takes advantage of Signal shortcutting ensuring that setText is only called if chapter duration is changed, and ignores all other properties of chapter.

Alternatively we could write this part like this:

currentSong.on(Threading.ui) { song => tvDuration.setText(song.duration.toSeconds.toString) }

But in that case setText might be called more often then actually needed, important thing to consider here, is that this happens on UI thread, which in itself is an expensive operation. We should always avoid unnecessary operations on UI thread.

Current position

Every time playback position changes we need to update progress bar and label. This may seem as straight-forward as updating song duration, but there is one hidden catch here. Depending on audio player implementation currentPosition property may be updated multiple times per second, even hundreds of times. We need to make sure that UI is not being updated so often, updating it once a second should be completely fine. Again, we can use Signal shortcutting to achieve that.

val positionSeconds = currentPosition.map(_.toSeconds)

positionSeconds.map(_.toString).on(Threading.ui) { tvPosition.setText }

Android ProgressBar accepts progress as int value in range 0 - 10000 (by default), so we need to take song duration into account.

val progress = for {
  song     <- currentSong
  position <- positionSeconds
} yield position.seconds * 10000 / song.duration.seconds

progress.on(Threading.ui) { pbProgress.setProgress }

Buttons

Disable buttons

Buttons should be enabled only if action is possible, in our case we need to disable buttons switching current song if there is no next or previous song. We need to first create signals with this information, we will get next and previous song uris at the same time, since we will need them later.

val indexInAlbum = for {
  album <- currentAlbum
  song <- currentSong
} yield (album, album.indexOf(song))

val prevSong = indexInAlbum map { case (album, index) =>
  if (index <= 0) None else Some(album.songs(index - 1))
}

val nextSong = indexInAlbum map { case (album, index) =>
  if (index >= album.songs.size - 1) None else Some(album.songs(index + 1))
}

prevSong.map(_.isDefined).on(Threading.ui) { btnPrevious.setEnabled }
nextSong.map(_.isDefined).on(Threading.ui) { btnNext.setEnabled }

Play button icon

Play button handles both play and pause actions, so its icon has to be changed based on current state.

service.playbackState.map(_.isPlaying).on(Threading.ui) { playing =>
  btnPlay.setImageResource(if (playing) R.drawable.ico_pause else R.drawable.ico_play)
}

Execute commands

Button actions depend on current state, for that, Signals have an api to access state directly. This may be unsafe, we should only access value of signals which have registered subscribers, otherwise their value may not be up to date. We also need to think about threading, Signal api is thread safe, but it doesn't guarantee that the value we got wasn't just changed by other thread. In our case, none of this should be a problem, in worse case we will call play() or pause() multiple times, and our service should handle that.

btnPlay setOnClickListener { v: View =>
  if (service.playbackState.currentValue.exists(_.isPlaying)) service.pause()
  else service.currentSong.currentValue foreach service.play
}
btnRewind setOnClickListener   { v: View => service.seek(currentPosition.currentValue.fold(Millis(0))(_ - Seconds(30))) }
btnForward setOnClickListener  { v: View => service.seek(currentPosition.currentValue.fold(Millis(0))(_ + Seconds(30))) }
btnPrevious setOnClickListener { v: View => prevSong.currentValue.flatten foreach { song => service.play(song.uri) } }
btnNext setOnClickListener     { v: View => nextSong.currentValue.flatten foreach { song => service.play(song.uri) } }

Drag Gesture

The last thing to implement is allowing user to select arbitrary playback position by dragging the progress bar.

We could handle that with ProgressBar change callbacks, would just need to make sure to distinguish user input generated changes with our changes from service, and maybe stop updating progress bar when user is touching it.

But standard progress bar is not very nice to use, it's also not accurate enough for our needs. It's better to handle drag gesture on whole player control view instead, this way user can just swipe anywhere around progress bar to move it.

Handling gestures in reactive fashion deserves its own series of articles, we will not go into details here, let's just use couple helper classes and assume that they do what we actually need.

val reactor = new TouchReactor(this)
val dragGesture = new DragGesture(getContext, reactor)

def duration = currentSong.currentValue.fold(Millis(0))(_.duration.toMillis)

def swipeDistance(startX: Float) =
  Signal.wrap(dragGesture.onDrag map {
    case (x, _) => (x - startX) / getWidth
  })

TouchReactor is our generic OnTouchListener, it transforms standard touch events into reactive EventStreams. This allows us to implement touch handling as several, mostly independent gestures. DragGesture consumes touch events from reactor and produces events related to dragging.

With this helpers in place, we can define drag handling logic.

val dragPosition: Signal[Option[Millis]] = {

  val dragStart = Signal(Option.empty[Float])

  dragGesture.onDragStart { case (x, _) => dragStart ! Some(x) }

  dragGesture.onDragEnd { dragged =>
    if (dragged) dragPosition.currentValue.flatten foreach service.seek
    dragStart ! None
  }

  dragStart flatMap {
    case None => Signal.const(Option.empty[Millis])
    case Some(startX) =>
      val startPos = currentPosition.currentValue.getOrElse(Millis(0))
      swipeDistance(startX) map { diff => Some(startPos + duration * diff) }
  }
}

This code actually does two main things, it calls service.seek at the end of drag gesture, and provides signal with current drag position, we can use this signal to update UI to give user instant feedback during swipe.

To have UI updates during swipe gesture we just need to rewrite positionSeconds signal to take user actions into account.

val positionSeconds = dragPosition flatMap {
  case Some(position) => Signal.const(position.toSeconds)
  case None           => currentPosition.map(_.toSeconds)
}

Done, now our UI reacts nicely to user input and updates from player service. We implemented complete control in around 100 lines of code, and it handles all interactions without any special case handling, all thanks to Signals and reactive service api. Notice that we didn't need to handle view lifecycle in any way, we didn't save or restore view state anywhere. We also didn't need to unregister any listeners. Signals handle all of that automatically, view state will be automatically refreshed on lifecycle events, even when view is recreated on screen rotation.
